The P202 and P302 pulse generators are used to determine an IC’s pulse immunity. During a Burst/ESD device test the generated pulse-shaped disturbances reach any ICs in the device under test. To individually test ICs, the pulse generators from LANGER EMV-Technik GmbH simulate these reduced disturbances and make it possible to analyse the immunity of each individual IC pin/ball during function.
The P202 pulse-current source was designed based on the mechanisms of magnetic-field disturbance coupling in electronic devices.
The P302 pulse-voltage source was designed based on the mechanisms of electric-field disturbance coupling in electronic devices.
For automated tests the generators are used with the IC Tester ICT1.
The P202 and P302 pulse generators can only be operated with the BPS 202 burst power station.
Scope of delivery

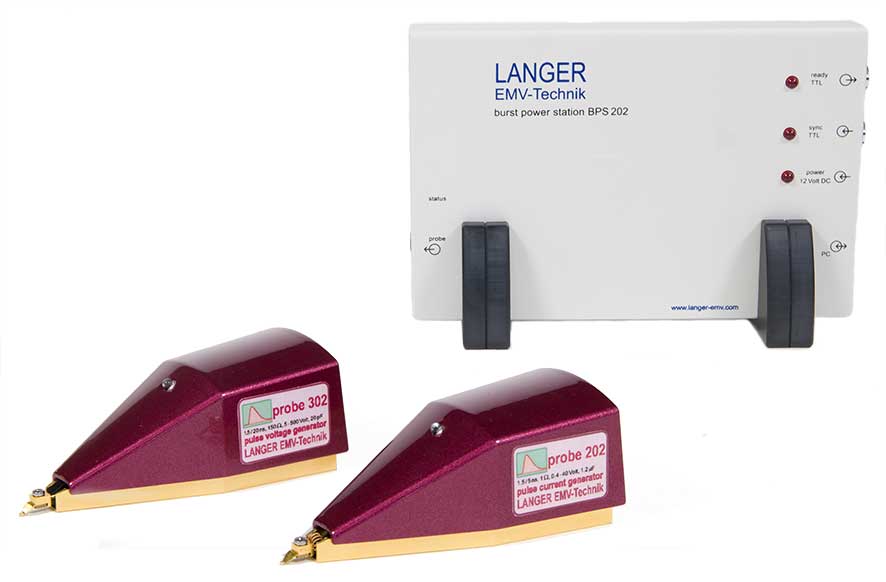

- 1x P202 L-EFT, Pulse Current Generator Langer Pulse 1.5/5 ns
- 1x P302 L-EFT, Pulse Voltage Generator up to 500 V Langer Pulse 1.5/20 ns
- 1x BPS 202, Burst Power Station
- 1x BPS 202-Client, BPS 202-Client Software
- 1x NT Ex EU, Power Supply Unit
- 1x P200 / P300 case, System Case
- 1x P202 / P302 m, User manual
Scope of delivery details

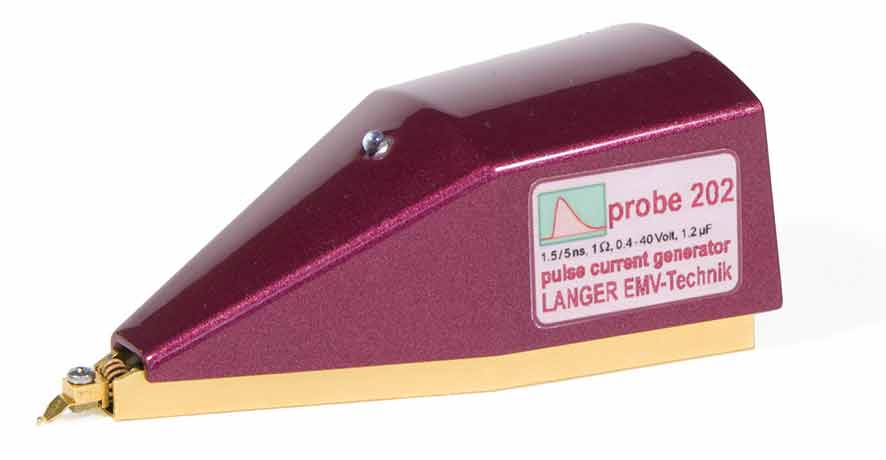

The P202 L-EFT pulse-current generator is used for the conductive coupling of disturbance pulses into test ICs. During tests according to the standards IEC 61000-4-2 / ICE 61000-4-4 the P202 simuates the reduced disturbance pulses that have reached the IC. These disturbance-current pulses created du…

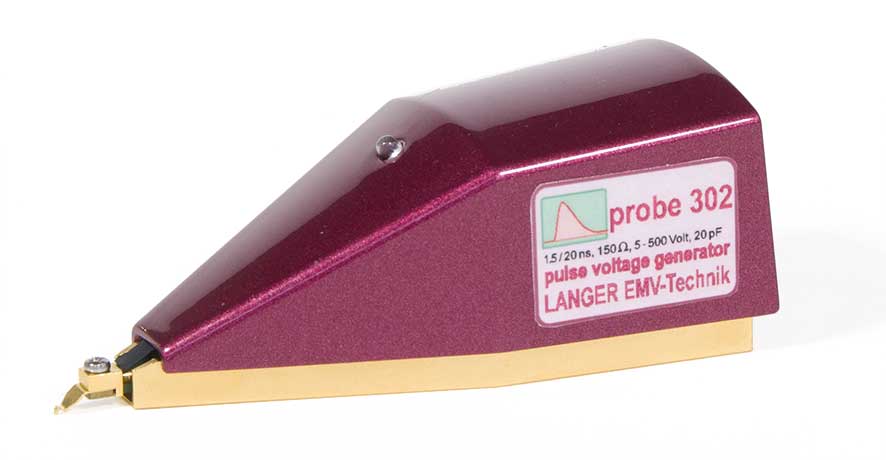

The P302 L-EFT pulse-voltage generator is used for the conductive coupling of disturbance pulses into test ICs. During tests according to the standards IEC 61000-4-2 / ICE 61000-4-4 the P302 simuates the reduced disturbance pulses that have reached the IC. These disturbance-voltage pulses created du…

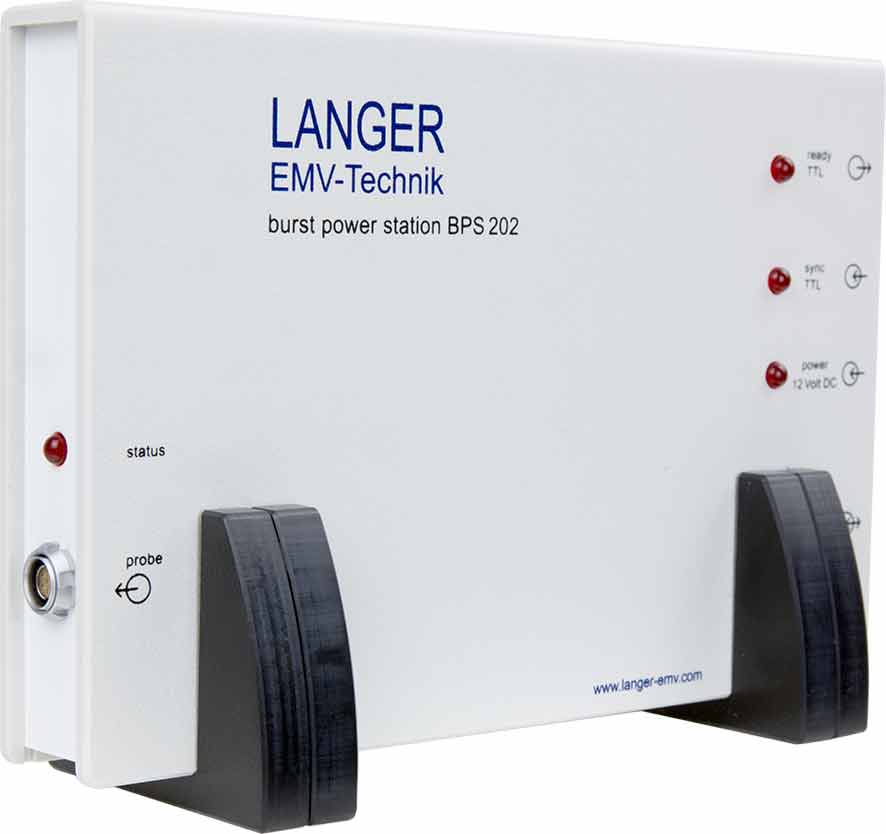

The BPS 202 is used as power supply and control unit for the Langer EMV-Technik GmbH pulse probes. The control unit is connected to the user PC via an USB interface. BPS 202-Client software does the controlling. With the BPS 202 input "sync" interference pulses of the connected probes can be synchro…
The BPS 202-Client software is used to control the BPS 202 Burst Power Station and thereby the connected probe. The software is installed on the user PC.
