The P503 probe set is used for conducted measurements of immunity according to IEC 62132-4. The gained knowledge of immunity parameters allows the IC optimization as well as the definition of the application requirements.

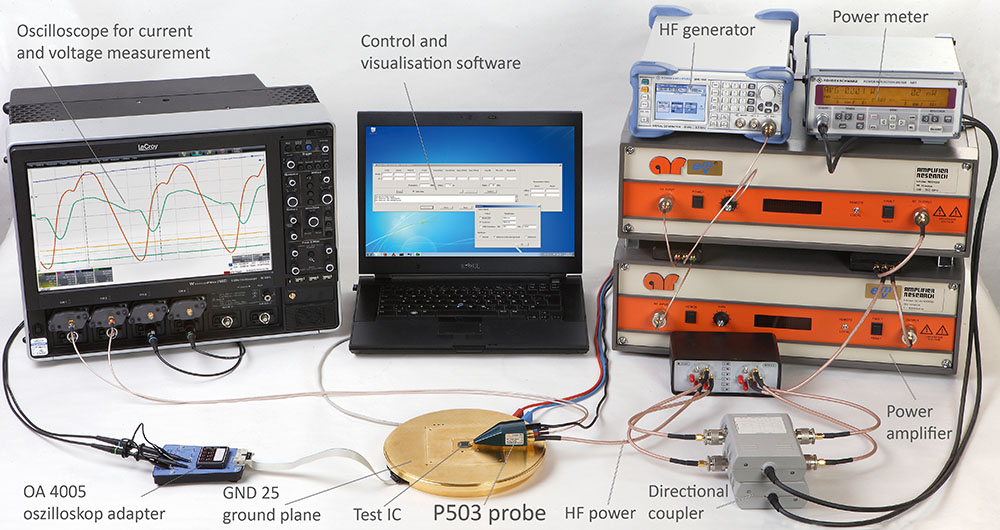

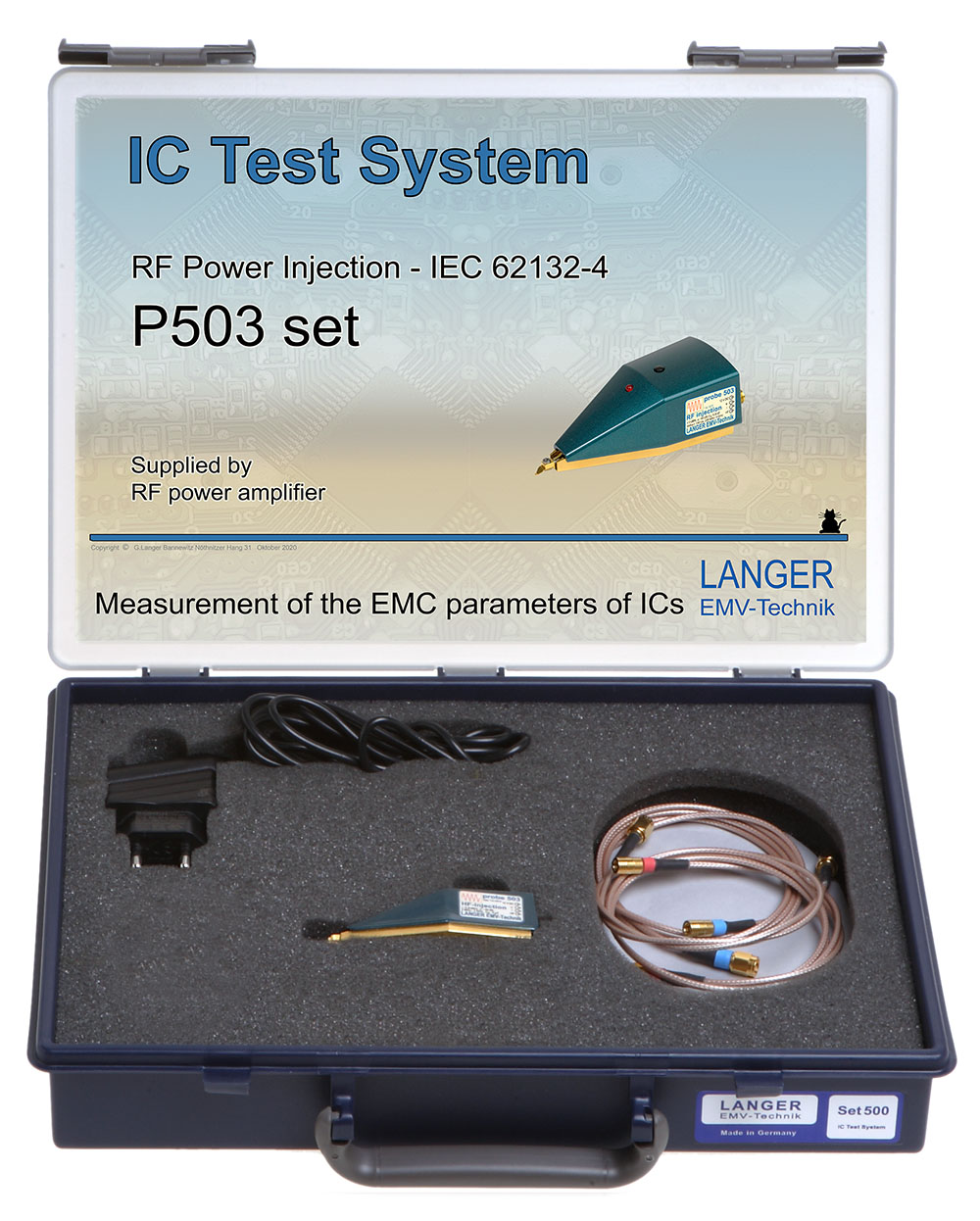

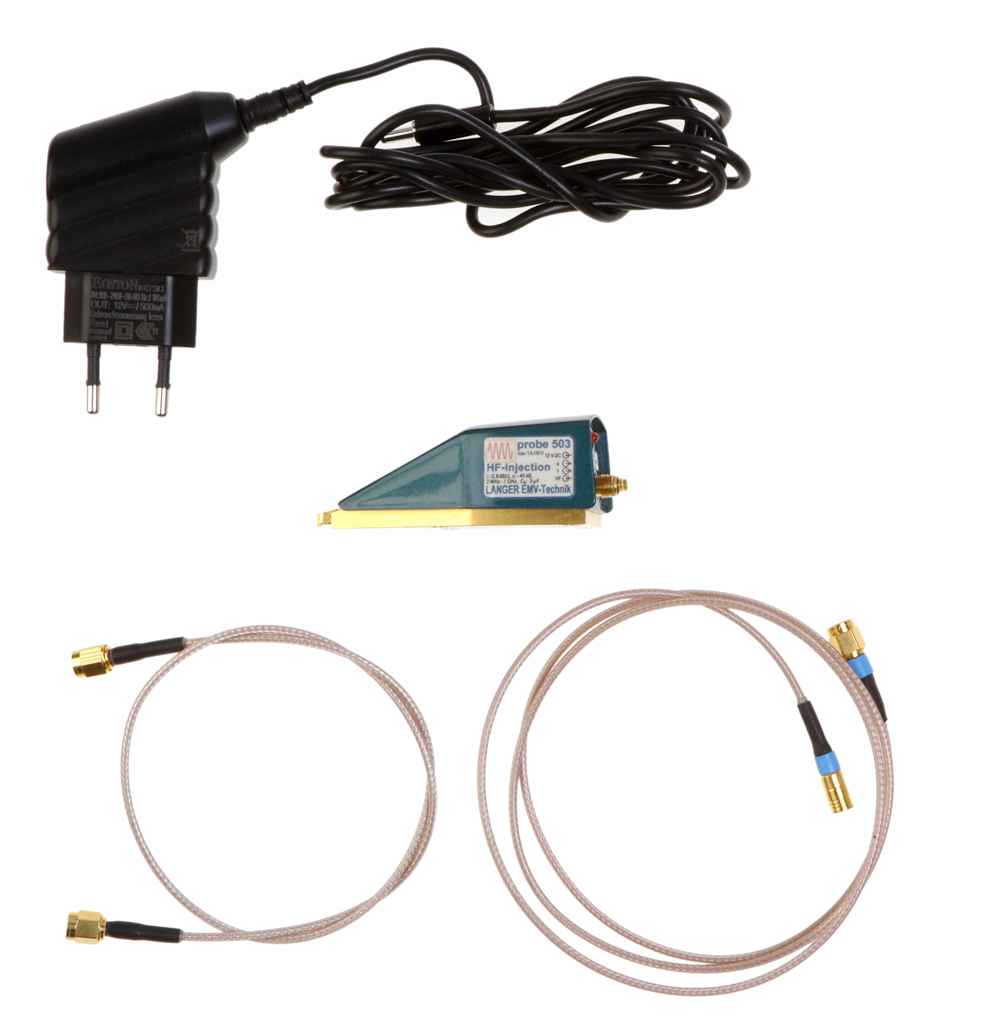

Scope of delivery

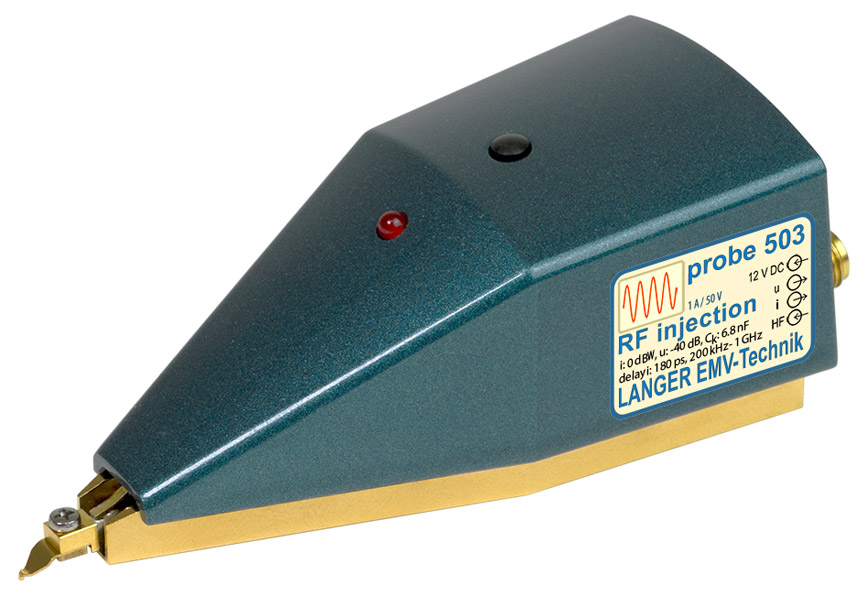

- 1x P503, DPI Coupling Network up to 1 GHz, 50 V
- 1x SMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable
- 2x SMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable
- 1x NT FRI EU, Power Supply Unit
- 1x P500 case, System Case
- 1x P500 m, P500 Set User Manual
Scope of delivery details

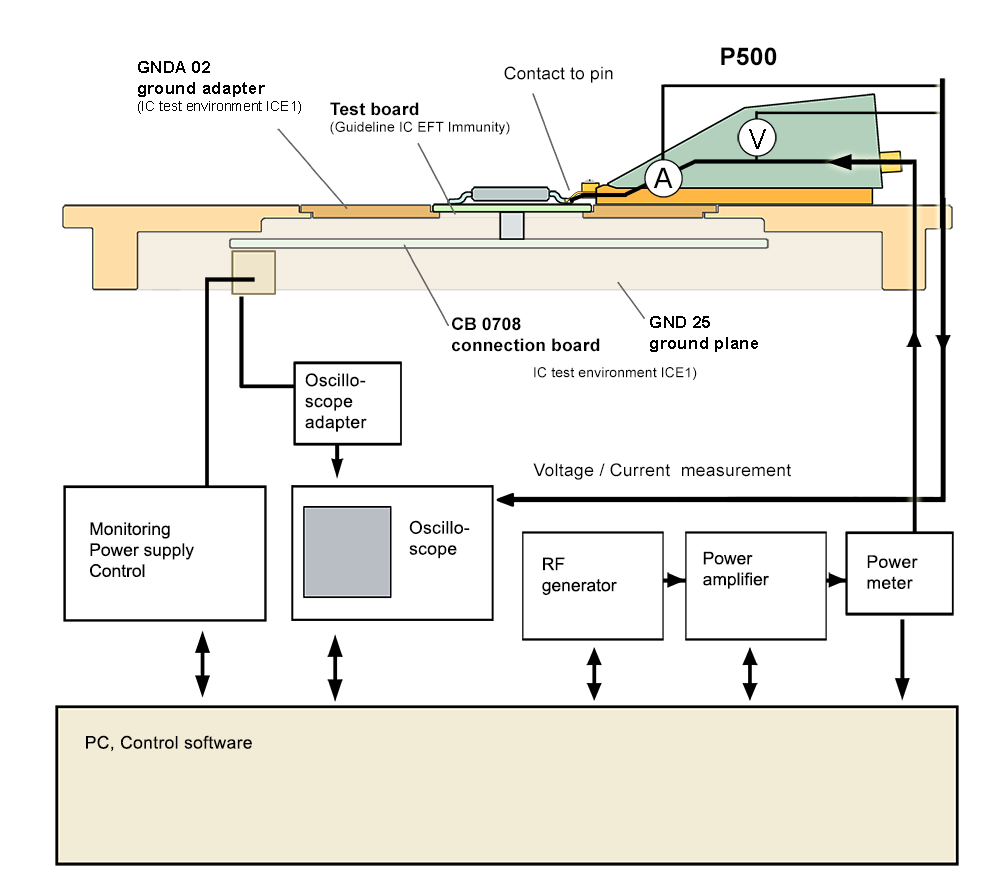

The P503 DPI coupling network is designed for RF direct power injection (DPI) in IC pins according to IEC 62132-4. Current and voltage can be measured seperately during the power injection via integrated measuring outputs. The P503 coupling network is connected to a power amplifier.
