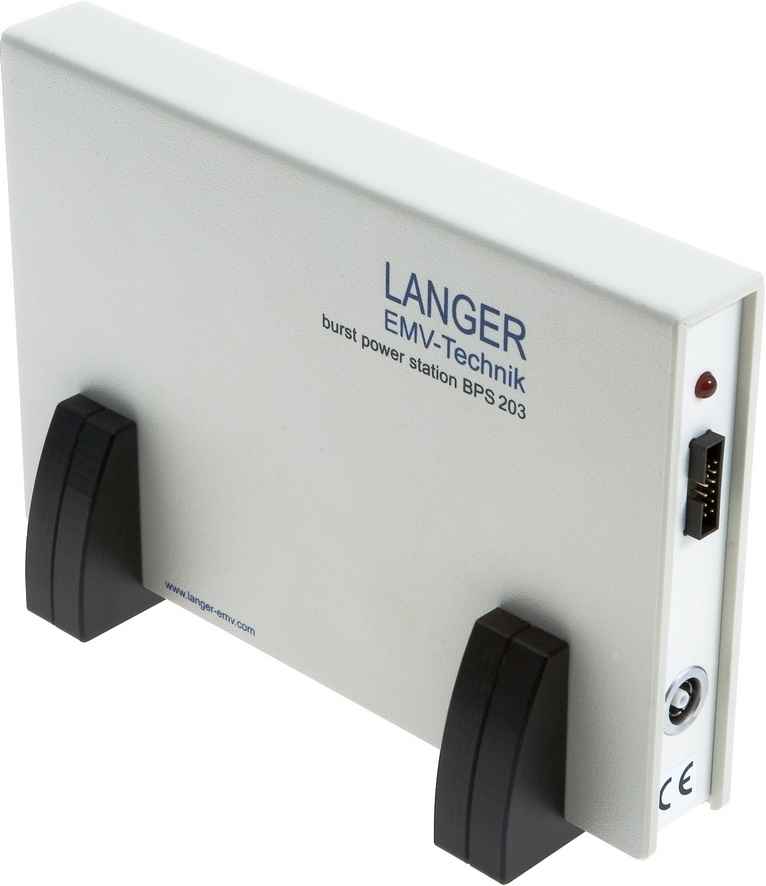

BPS 203
Burst Power Station
Short description
The BPS 203 Burst Power Station is used as high voltage supply and control unit for ESD-probes. The unit control is connected to the user PC via an USB-interface. The control is realized by the BPS 203-client software.
- adjustment of pulse frequency and high voltage
- single pulse or pulse sequence with selectable pulse rate
Technical parameters
| Frequency range | 0.1 Hz - 30 Hz |
| Output voltage | ± (0.1 ... 6) kV |
| Supply voltage | 12 V / 1 A DC |
| Interface | USB |
| Weight | 350 g |
| Sizes (L x W x H) | (175 x 122 x 61) mm |
| Software | BPS 203-Client |
