P1602 / P1702 set
RF Field Emission up to 3 GHz
-
-

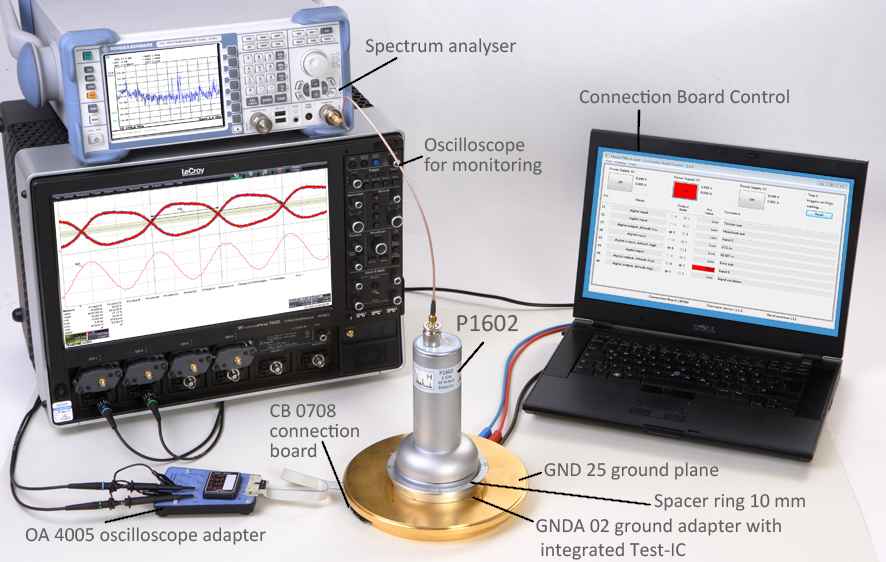

Application with P1602 -

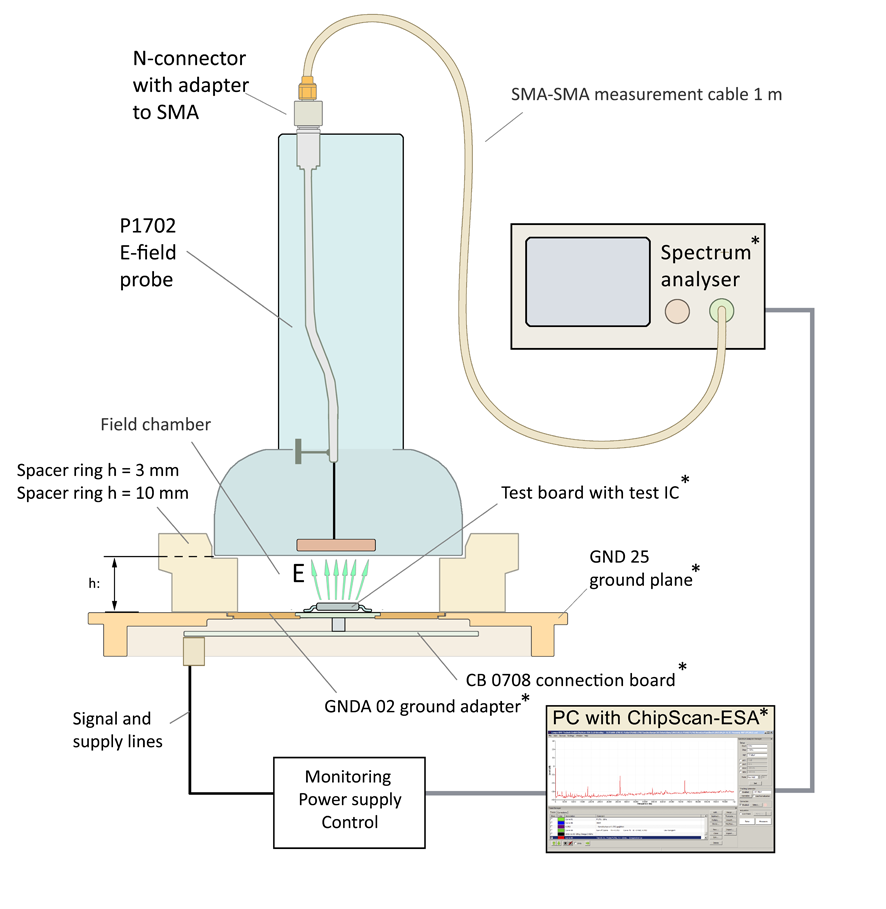

Scheme measurement set-up with P1702 -

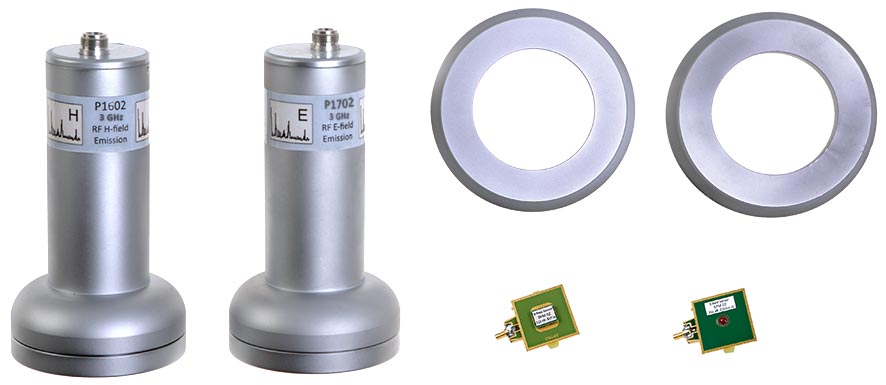

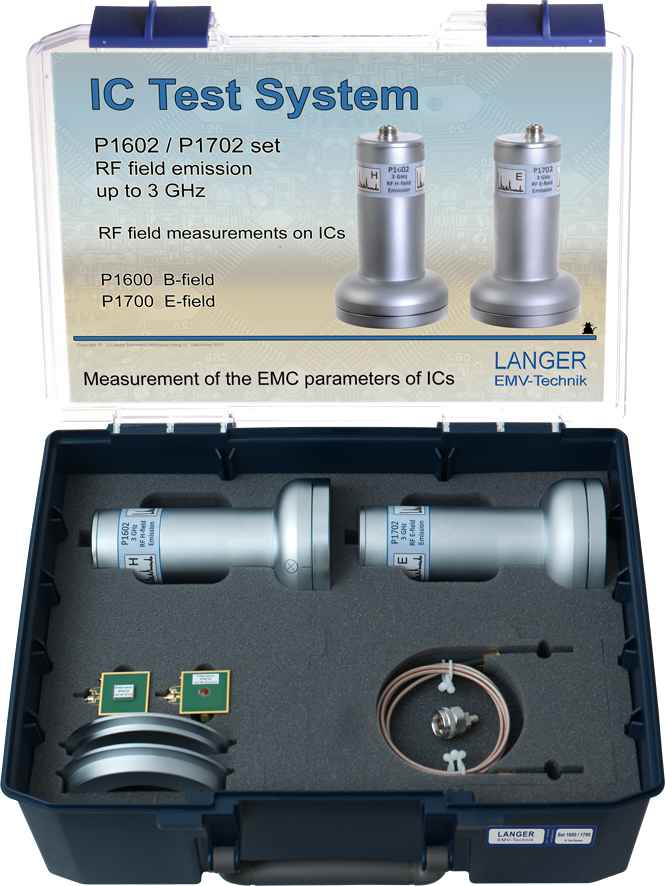

Scope of delivery P1602 / P1702 set
Short description
The RF field emission probe set consists of a magnetic field probe and an electric field probe. They are used to measure the respective radiated near fields of an IC in operation. The measured data help to assess separately the emissions of an IC according to field types.
Measurements and all calculations are carried out with the software ChipScan-ESA.
Scope of delivery
- 1x P1602, RF Magnetic Field Probe
- 1x P1702, RF E-Field Probe
- 1x CS-ESA set, ChipScan-ESA Software / USB
- 1x EPM 02, dE/dt Field Meter
- 1x BPM 02, dB/dt Field Meter
- 1x D70 h03, Spacer Ring, 3 mm
- 1x D70 h10, Spacer Ring, 10 mm
- 1x FKE 30, Field Chamber Insert
- 1x SMA-SMA 1 m, SMA-SMA Measuring Cable
- 1x SMA-SMB 1 m, SMA-SMB Measuring Cable
- 1x N-SMA, Adapter
- 1x P1600 / P1700 case, System Case
- 1x P1600 / P1700 m, P1602 / P1702 Set User Manual
Scope of delivery details
-
P1602

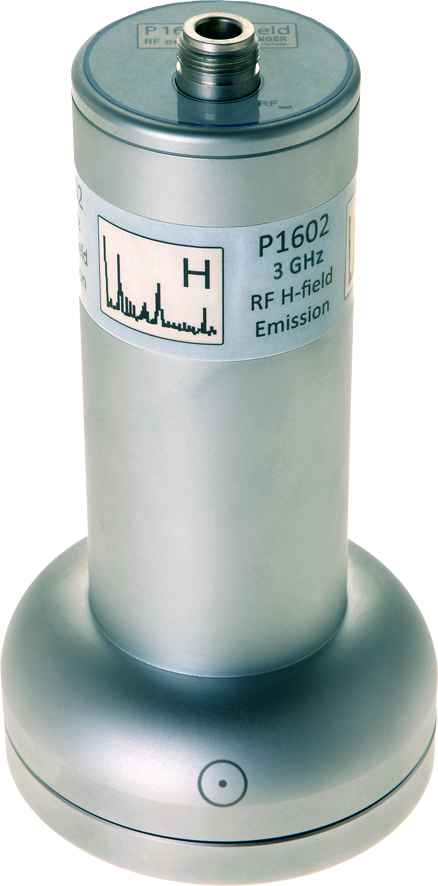

RF Magnetic Field Probe
The P1602 RF magnetic field probe is used to measure magnetic near fields up to 3 GHz, which are coupled out from an IC. These fields induce a voltage inside the field probe's conductor. The induced voltage is measured by a connected spectrum analyzer.
-
P1702

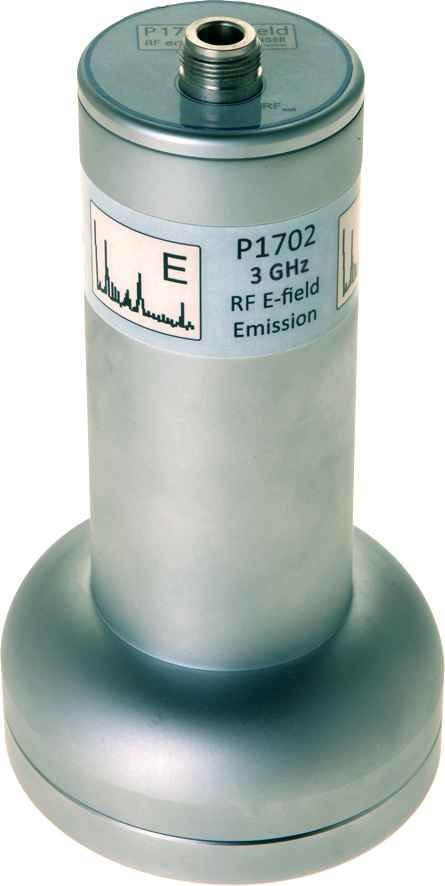

RF E-Field Probe
The P1702 RF E-field probe is used to measure electric near fields, which are coupled out by an IC. The fields couple into the near-field electrode. The generated displacement current generates a voltage drop at the input of the connected spectrum analyzer. This voltage drop is measured by the conne…
-
CS-ESA set
ChipScan-ESA Software / USB
ChipScan-ESA is a software designed to control a spectrum analyzer remotely. The measurement curves are saved and logged in the software. The user can then combine saved curves with other saved curves, correction curves, frequency-dependant functions (curves), or constants into a single curve. Any n…
-
EPM 02
dE/dt Field Meter
The EPM 02 is suitable for the measurement of fast transients with a bandwidth up to 3 GHz. The dE/dt field meter doesn't have a lower limit frequency. Depending on the noise limit of the used measuring device the usage of the EPM 02 is limited in the lower frequency range. For example, at a noise …
-
BPM 02
dB/dt Field Meter
The BPM 02 is a dB/dt field meter and it is used to measure the temporal change of the magnetic field strength characteristics dB/dt up to 3 GHz. The lower limit frequency depends on the measurement set-up.
