  • S21, Optical Sensor (10 Mbps)

S21

Optical Sensor (10 Mbps)

  • Short description
  • Technical parameters
Send enquiry Datasheet

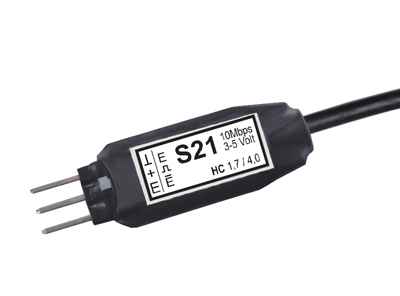

  • S21, Optical Sensor (10 Mbps)

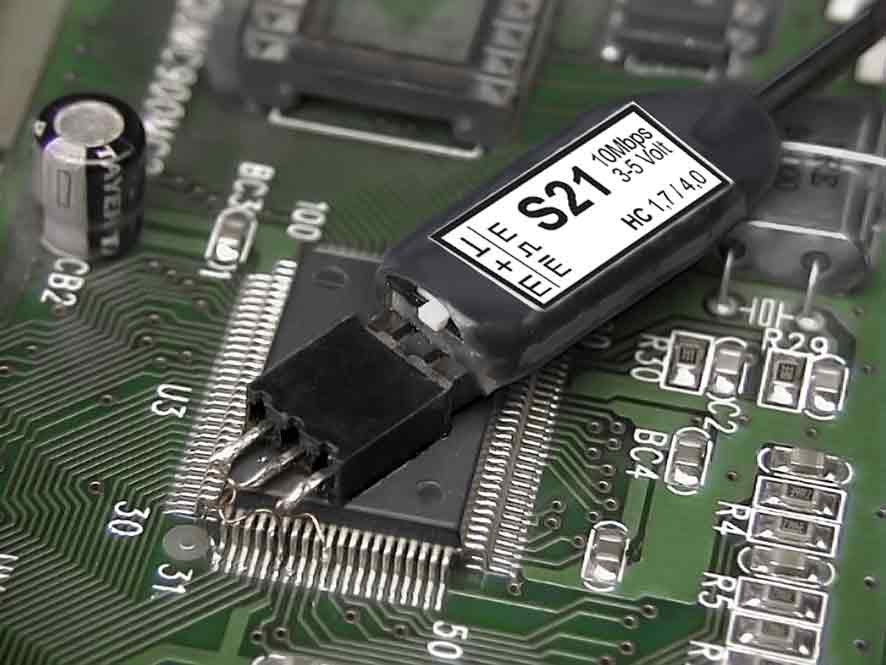

  • Application with S21 sensor
    Application with S21 sensor
S21, Optical Sensor (10 Mbps) Application with S21 sensor
  • S21, Optical Sensor (10 Mbps)
  • Application with S21 sensor
Short description

The S21 sensor is a digital probe for nonreactive transmissions of binary signals out of the device under test during a burst testing. The sensor is positioned directly onto the PC board of the device under test and is powered by the device under test. In the sensor the digital signal is transformed into an optical signal and is transmitted via a fibre optical cable to the receiver/ oscilloscope.

Signal transmissions via a fibre optic cable do not change the testing environment of the device under test while the signals received allow the device under test`s concrete functions to be controlled, meaning disturbed signals can be immediatly detected.

Technical parameters
Transmission range DC ... 10 Mbps
Optical fibre connector 2.2 mm Ø
Supply voltage (3 -5) V
Current input 10 mA
Sizes (L x W x H) (34 x 10 x 6) mm
