The RF magnetic field injection up to 3 GHz probe set tests the ICs in terms of their immunity under the influence of RF magnetic fields (P1402) or RF-E-field (P1502).
These analysises are the basis for an EMC compatible development of ICs. Furthermore, the detemined RF parameter are helpful for the IC user to develop optimal IC applications.

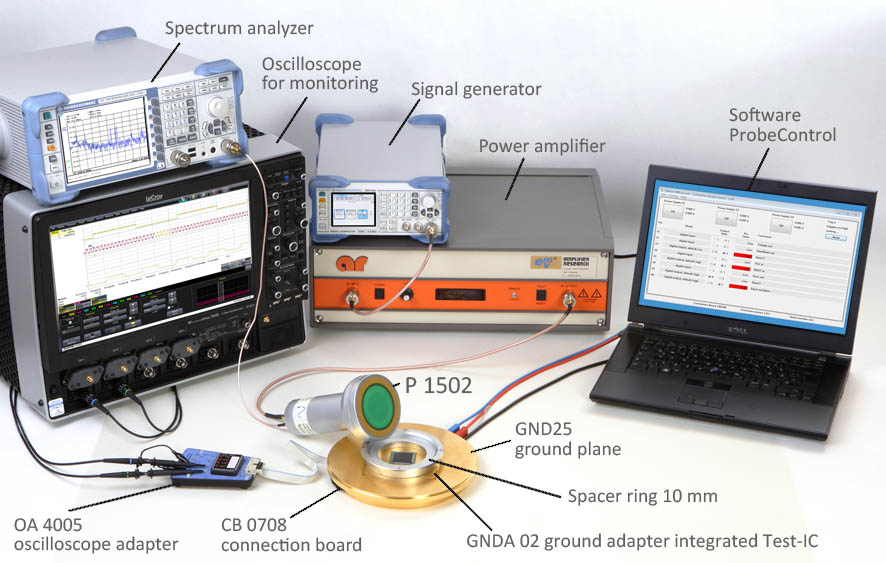

In addition to the test setup an ICE1 test environment, a RF generator and a power amplifier are needed.
Field sources can only be run in connection with a short circuit- and open circuit proof power amplifier.

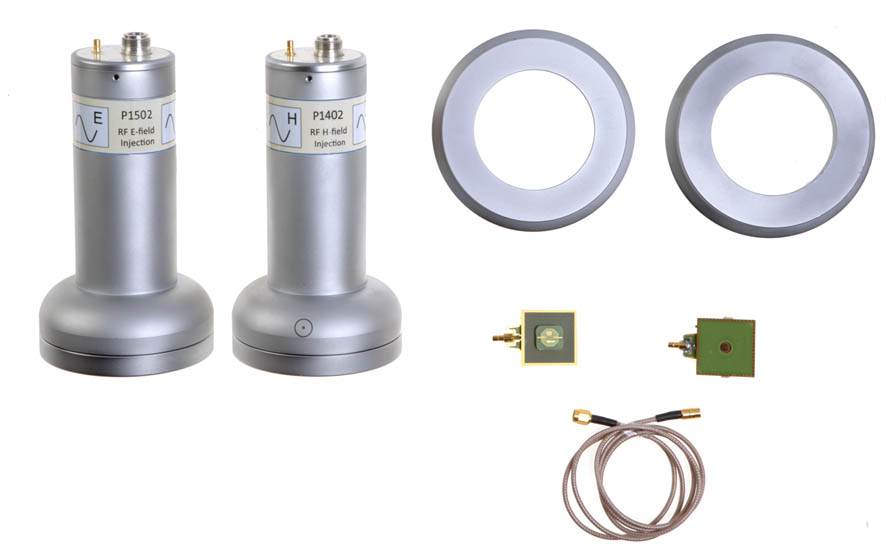

Scope of delivery
- 1x P1402, RF Magnetic Field Source up to 3 GHz
- 1x P1502, RF E-Field Source up to 3 GHz
- 1x EPM 02, dE/dt Field Meter
- 1x BPM 02, dB/dt Field Meter
- 1x D70 h03, Spacer Ring, 3 mm
- 1x D70 h10, Spacer Ring, 10 mm
- 2x SMA-SMB 1 m, SMA-SMB Measuring Cable
- 1x FKE 30, Field Chamber Insert

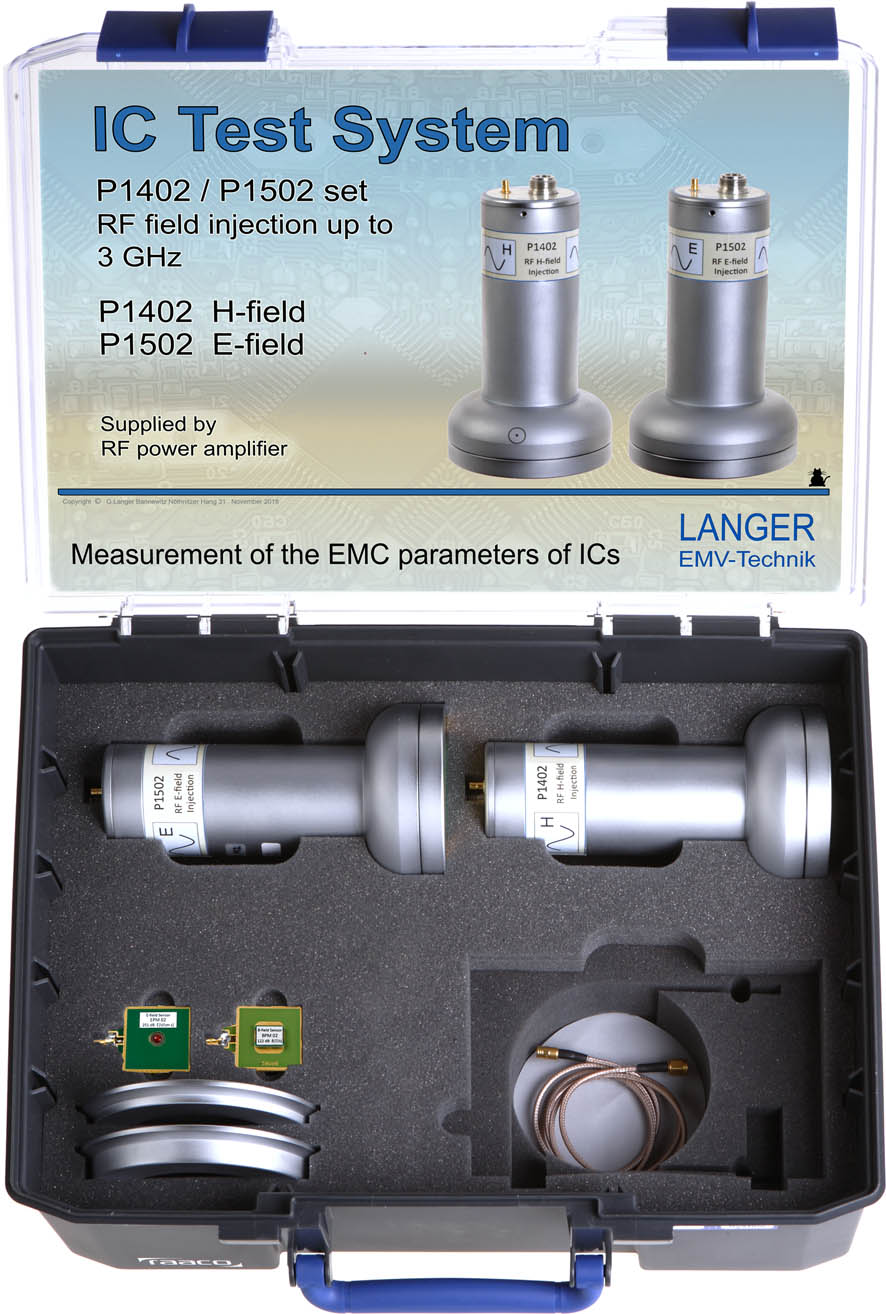

- 1x P1402 / P1502 case, System Case
- 1x P1400 / P1500 m, P1401 / P1501 Set User Manual
Scope of delivery details
The P1402 RF magnetic field source tests the ICs in terms of their immunity under the influence of RF magnetic fields. The IC to be tested is tested while it is running. The P1402 magnetic field source is operated in connection with a power amplifier and a RF signal generator. * above 2 GHz the E-f…
The P1502 RF E-field source tests the ICs in terms of their immunity under the influence of RF E-fields. The IC to be tested is tested while it is running. The P1502 E-field source is operated in connection with a power amplifier and a RF signal generator.
The EPM 02 is suitable for the measurement of fast transients with a bandwidth up to 3 GHz. The dE/dt field meter doesn't have a lower limit frequency. Depending on the noise limit of the used measuring device the usage of the EPM 02 is limited in the lower frequency range. For example, at a noise …
The BPM 02 is a dB/dt field meter and it is used to measure the temporal change of the magnetic field strength characteristics dB/dt up to 3 GHz. The lower limit frequency depends on the measurement set-up.
