OB 100 set
-
-

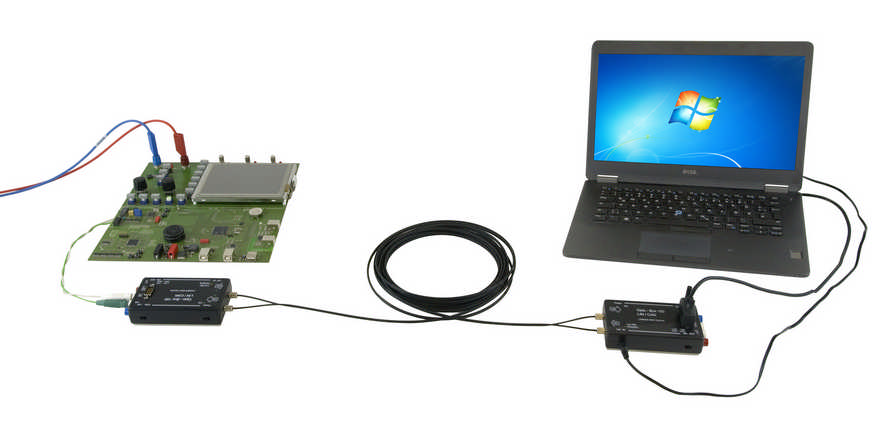

Application of OB 100 set -

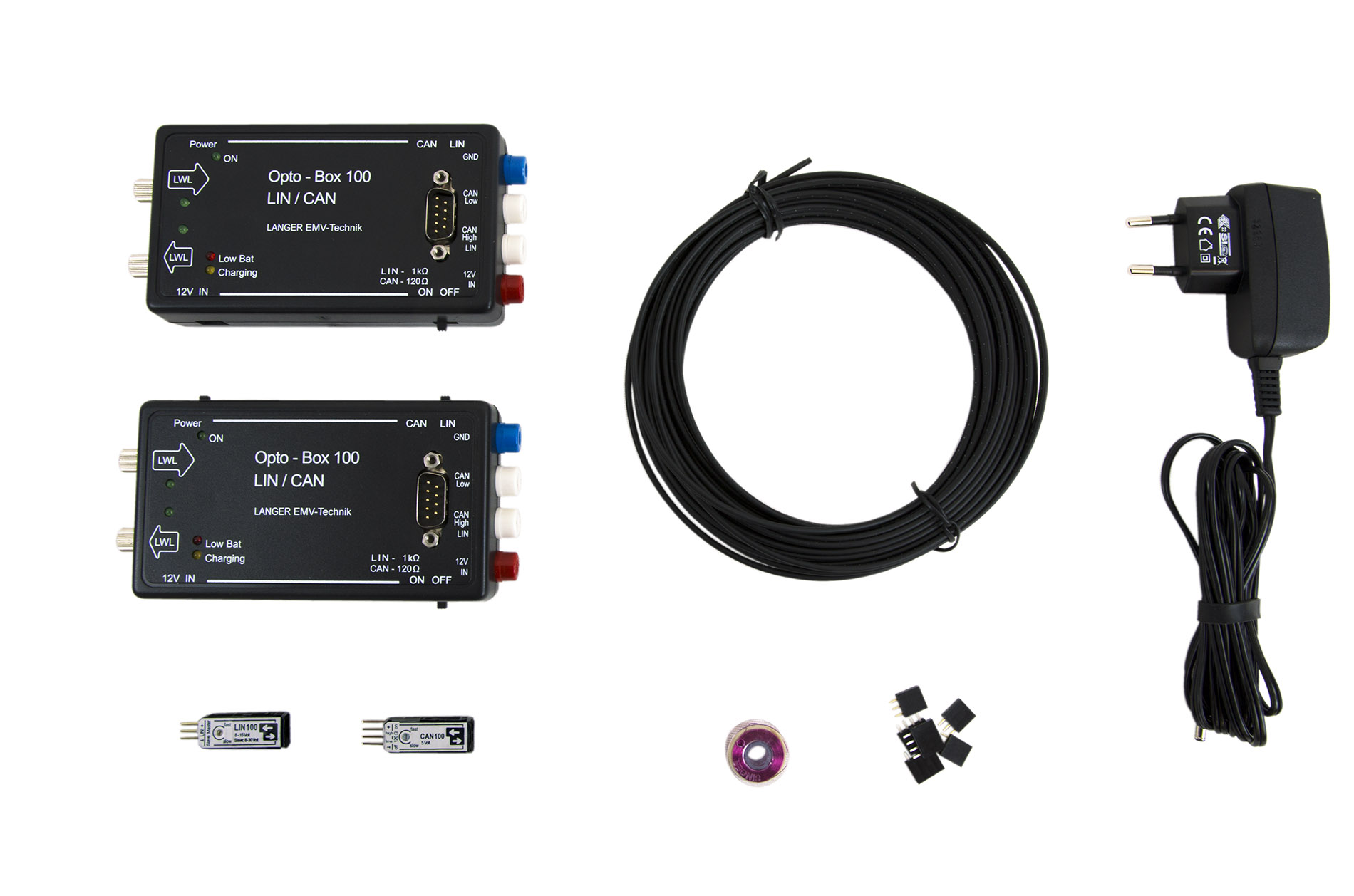

Scope of delivery OB 100 set
By combining the OB 100 with a LIN 100 or CAN 100 sensor, a very high disturbance immunity of the respective signal connection can be achieved.
Delivery content
- 2x OB 100
- 1x CAN 100, 光纤探头 CAN现场总线
- 4x Adapter Socket, 4-poles
- 1x LIN 100, 光纤探头
- 4x Adapter Socket, 3-poles
- 1x LWL double 10 m, 10m 双通道光纤
- 1x Wire CuL, 镀铜电线卷
- 1x NT Ex EU
- 1x OB 100 set m
- 1x A4 case
Technical parameters
| Operating time with charged internal batteries | up to 1 week (depending on operating mode) |
| Supply voltage | 12 V (max. 25 V) |
| max. current input at 12 V | 250 mA (while charging internal battery) 45 mA (without charging internal battery) |
| 光纤接口 | 2 x 2.2 mm Ø |
| 光线长度 | 20 m (6 m at 1 Mbit/s CAN) |
Delivery content details
-

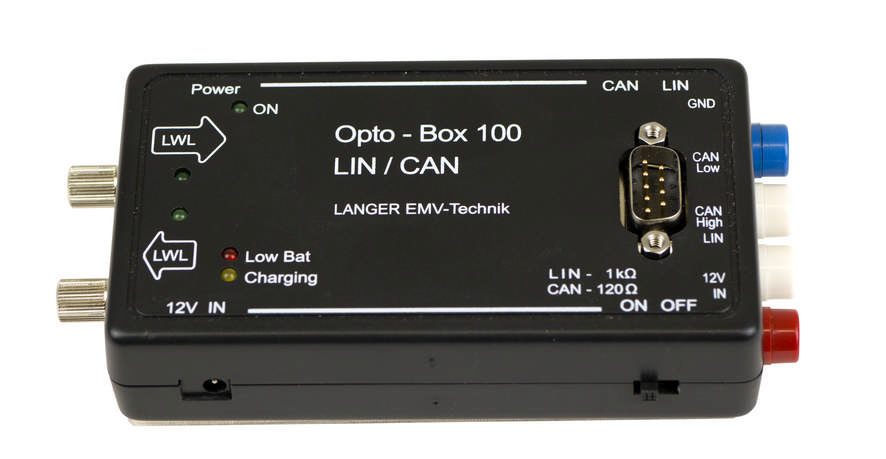

OB 100
-
CAN 100
光纤探头 CAN现场总线
CAN 100 型光纤探头现场总线可以按照CAN标准无电势传递信号。探头非常小，使用时可直接安置在元件组上。该总线是双层材料光纤，因此具备双向光学传递线路，适于在电磁兼容（EMV）实验中传递信号。
-
LIN 100
光纤探头
LIN 100 型 光纤现场总线按照LIN可以标准无电势传递信号。探头非常小，使用时可直接安置在元件组上。该总线是双层材料光纤，因此具备双向光学传递线路，适于在电磁兼容（EMV）实验或较大电势差中传递信号。
-
LWL double 10 m
10m 双通道光纤
直径2.2mm的10m 双通道光纤是用于传导光信号的双通道柔性纤维体。
