ES 01-h
电场源
-
-

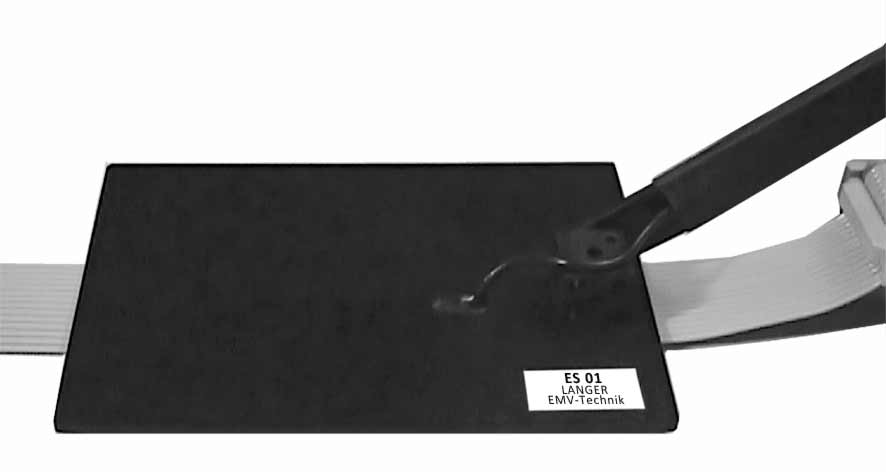

Application with ES 01
Short description

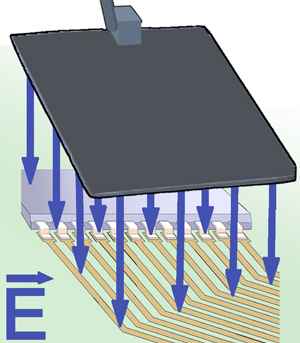

借助ES 01-h 型电场源可以实现大范围内的电耦合。这种场源适合于向5到10厘米范围内的薄弱点施加电场干扰。它介于ES 00-h型和ES 02-h型电场源之间。
The field source is powered by an EFT/burst generator or TS 23 Pulse Generator. The generator is connected to the 4.4 kV, high voltage resistant SMB plug of the field source via a high-voltage cable (HV SMB 1 m, SMB-BNC 1 m, or GK 0.7 m SMB-SMB).
Technical parameters
|
