S603 / S750 set
![S603 / S750 set](/fileadmin/Bilder300/2017.11.15 S603 S750 set case.jpg?v=1716102004013)

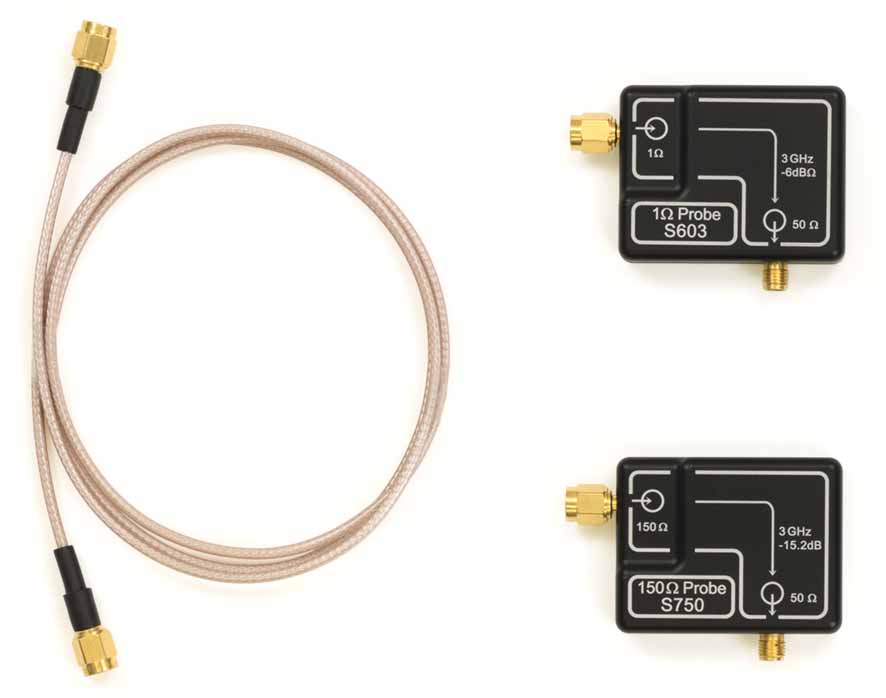

![S603/S750 set scope of delivery](/fileadmin/Bilder300/2017.08.14 S603 S750 set scope of delivery.jpg?v=1716102006617)

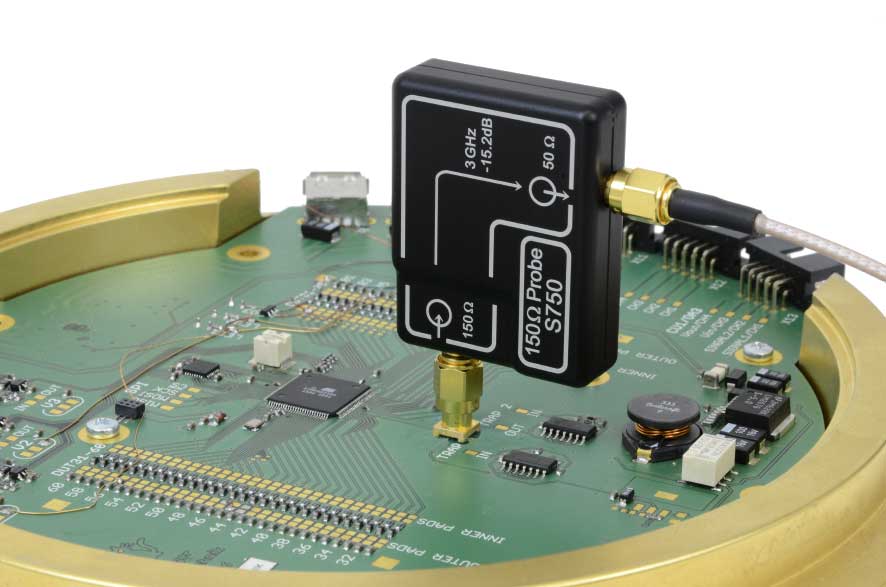

![Application with S750 RF voltage probe](/fileadmin/Bilder300/2017.07.12 Application with S750 RF voltage probe SMA.jpg?v=1716102006617)
The measurements with the S603/S750 ensure a high repeatability and comparability of the measurements.
The measurements can be performed with the ChipScan-ESA software. The measurement results of all measured pins are saved with the help of the software. It allows systematically and quickly comparison and analysis of the measured data.
Delivery content
Delivery content details
-
S603
1Ω高频电流表 SMA
P603是1Ω探头,用于直接测量集成电路引脚上的高频电流。测量时,把它接到电源引脚(Vdd/Vss)或信号引脚上。1Ω高频电流表拥有针脚触点,借此可以接触到并对单个的引脚并进行测量。
-
S750
150Ω高频电压表 SMA
P750 高频电压表带有150Ω的耦合电路,它根据IEC 61967-4测量集成电路引脚的高频电压。P750探头具备高阻抗的电容耦合输入,因此能够测量受测物上不同引脚的射频电压。
