P603
RF Current Probe 1 Ohm
-
-

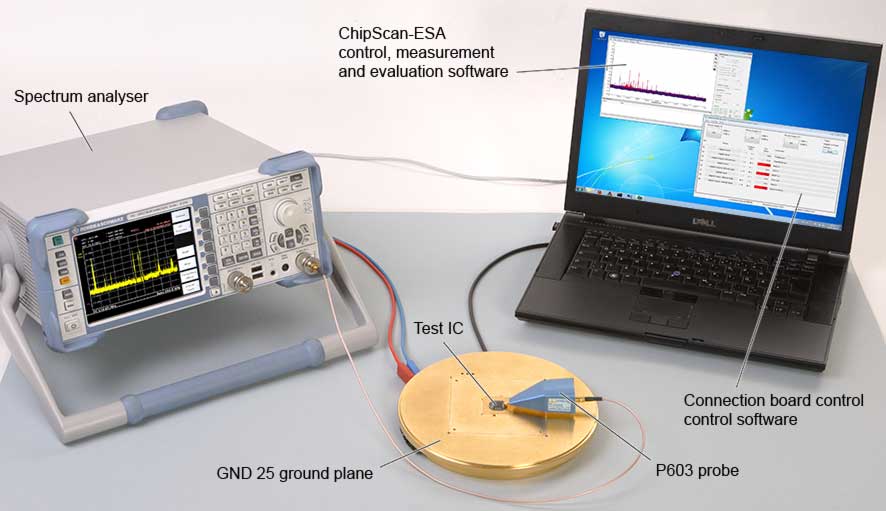

Application with P603
Short description
The P603 is a 1 ohm probe for direct measurement of high frequency (RF) current at IC pins. It is used to measure at supply pins (Vdd / Vss) and signal pins. The 1 ohm RF current probe has a pin contact with which IC pins can be separately contacted and measured.
Technical parameters
| Frequency range | 9 kHz ... 3 GHz |
| Coupling capacity | 8 µF |
| Measuring output | 50 Ω, SMB |
| Transfer factor voltage | -6 dB |
| Ammeter /current probe | |
| Shunt | 1 Ω |
| Current correction factor R | -6 dBΩ |
| Inductance | 1 nH |
| Max. power dissipation | 2.5 W |
| Frequency response |
|
| Equivalent circuit |
|

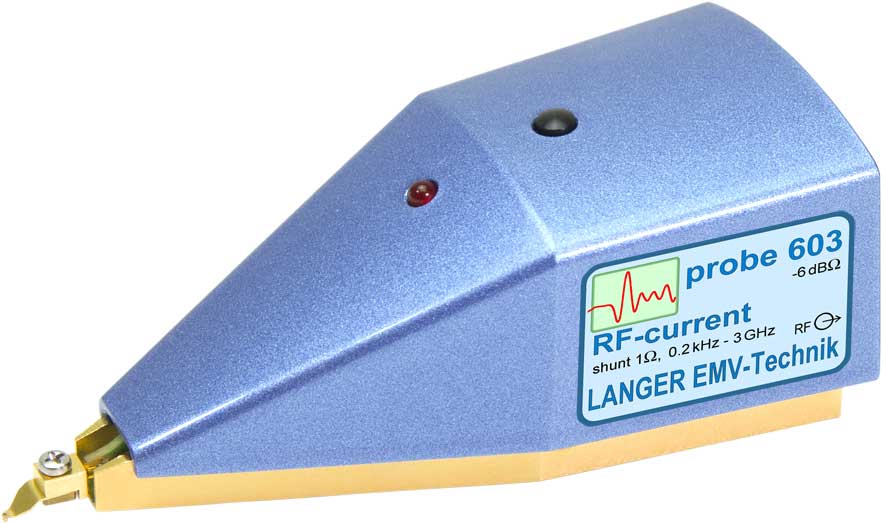

| Design, view 1 |
|
